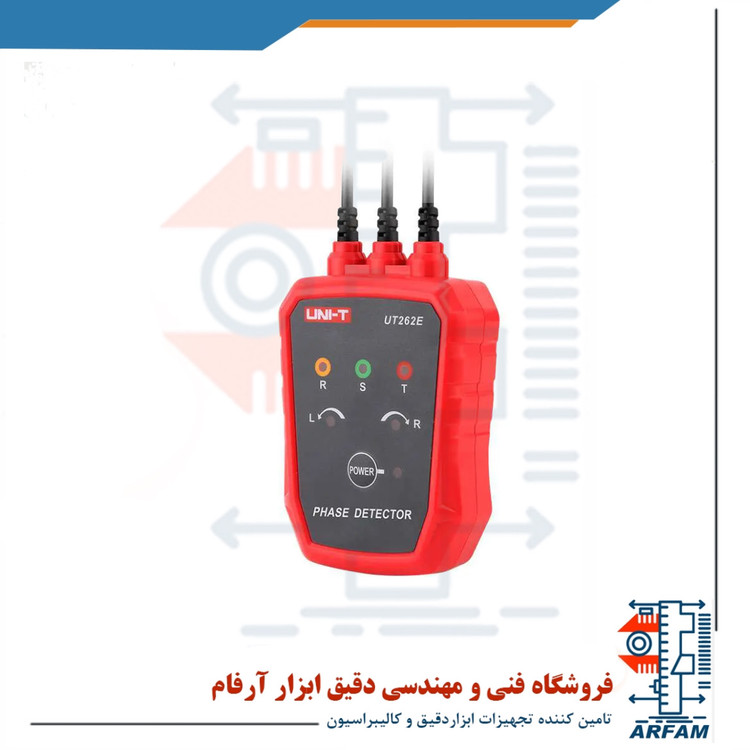

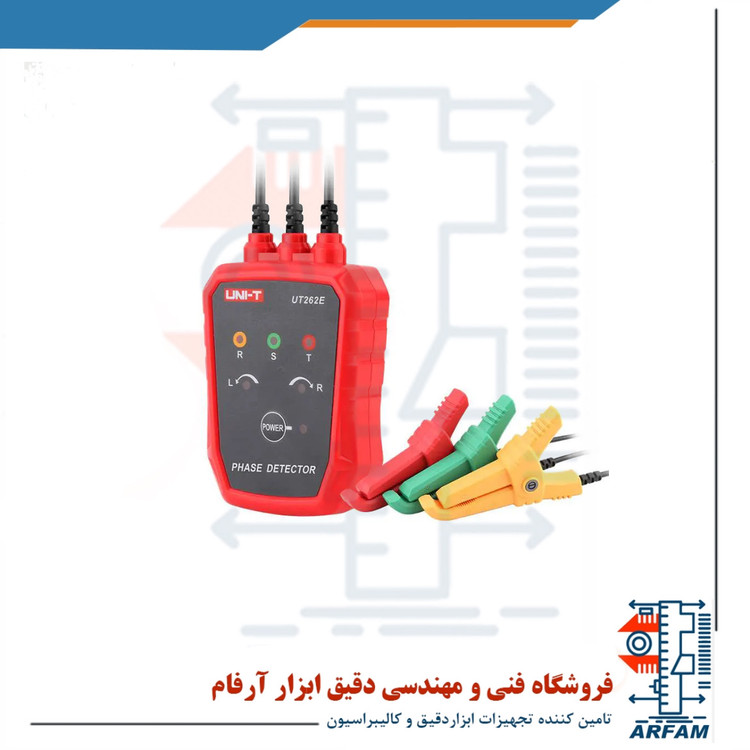

RST METER UNI-T UT262E

ModelsUT262EFunction/ApplicationPhase detection, live wire examination, power inspection, phase loss judgment, breakpoints finding, breakpoints positioning.Measurement methodNon-contact detectionPhase wire positionPut the wires at the position between “▲” and “▼” marked on the clampVoltage rangeThree-phase voltage, 70-1000V AC （45Hz ～ 66Hz)Operating frequency50Hz/60Hz（±10%）50Hz/60Hz, Automatically identify within the range of frequency error of standard power grid, the frequency range of other variable-frequency power supply is not examined.Test methodNon-contact clampingDiameter of wires can be clamped: ø2mm～ø40mm
Double-insulated LDPE clamp (0.5mm²*1C+B), OD: 3.5mm, extension wire length: 0.6m.Power supply1.5V AA*2 alkaline batteriesContinuous working time: more than 20 hoursPower consumptionPower-off current is less than 10uA @3VMaximum average working current: 70mA @3VLow battery indication<2.4VThe indicator light flashes slowly to indicate low battery.<2VThe buzzer beeps twice to indicate power off.Auto power offAfter the detector is turned on for about 5 minutes, it will power off automatically and the buzzer will beep twice.Operating temperature32～122°F (0～50°C)Operating humidity>85% (Non condensing)Storage temperature4～140°F (-20～60°C)Altitude< 2000mButton life10000 cyclesInsulation intensity3.7kVrmsBuzzing decibel65～70dBIP ratingIP52Safety certificationCE, UKCAEN61010-1: 2001, EN61010-031: 2002Safety ratingPollution Class 2, CAT Ⅳ (600V), CAT III(1000V), 8000V transient overvoltage (Only for the clamp)General CharacteristicsProduct ColorRed, blackProduct weight (include batteries)237.7g (including batteries); 191.5g (excluding batteries,REF)Product Dimension88mm*30mm*66mm (REF)Standard accessoriesUser manual: 1 pc
Carrying bag: 1 pc
Warranty card: 1 pc
Inspection Certificate: 1 pc
AA alkaline battery: 2 pcsStandard packageGift box, carrying bagStandard quantity per carton5pcsStandard carton Dimension345X195X200mmStandard carton gross weight238 g
