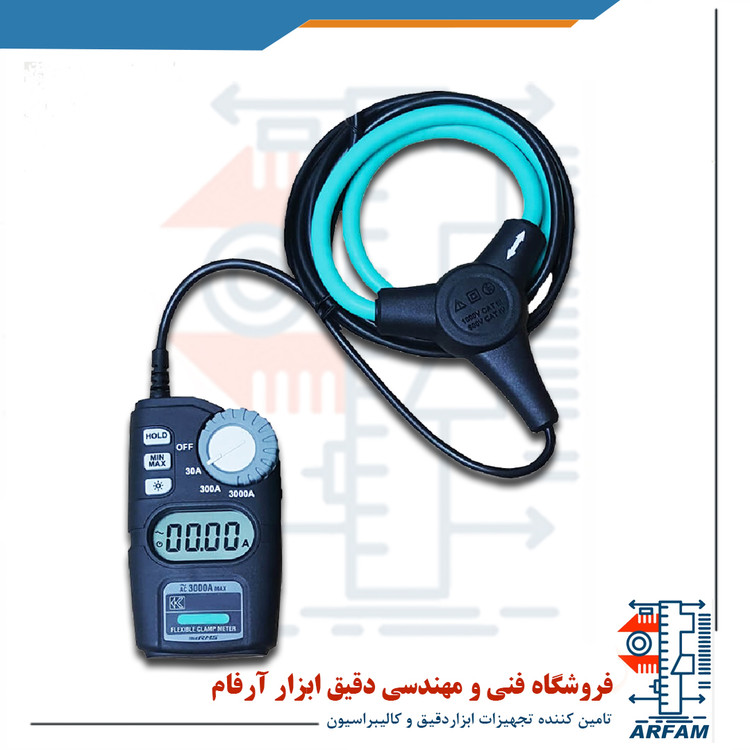

آمپر متر کلمپی دیجیتال فلکسی کیوریتسو مدل KYORITSU 2210R
Kyoritsu 2210R AC Digital Clamp Meter, True RMS
| AC A (RMS) | ||
|---|---|---|
| Range | 30.00/300.0/3000A | |
| Accuracy | ±3%rdg±5dgt[45-500Hz] (At the center of the circle formed by the flexible sensor) | |
| Crest factor (CF) | Full scale CF<1.6, half scale<3.2 Effective input crest values are √2 times of the max values of each range. | |
| Conductor size | φ150mm max. | |
| Influence of Conductor position | Additional ±3% (max.) depending on the distance from the center position | |
| Overload protection | 5000A AC for 10 seconds | |
| Applicable standards | IEC 61010-1, IEC 61010-2-032 CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2 IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS) | |
| Operating temperature & humidity | 0 - +50℃,less than 80% RH (without condensation) | |
| Storage temperature & humidity | -10 - +60℃,less than 70% RH (without condensation) | |
| Power source | R03 / LR03(AAA)(1.5V)×2 ※Continuous measuring time：approx.120hours (Auto power off：approx.15 minutes) | |
| Dimensions | 120(L)×70(W)×26(D)：Display unit φ8.5mm approx.：Cable diameter 1.8m approx.：Cable length | |
| Weight | 300g approx. (including batteries) | |

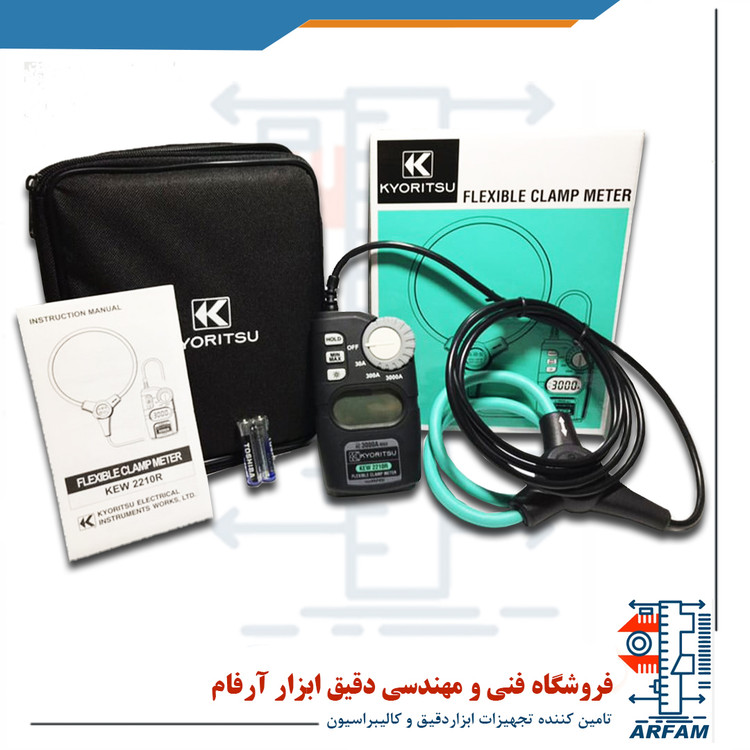

| Included Accessories | 9174 (Carrying case) LR03(AAA)×2, Insruction manual | |
