ویوور تفسیر فیلم رادیوگرافی هوآتک مدل FV-2080

ویوور تفسیر فیلم رادیوگرافی هوآتک مدل FV-2080

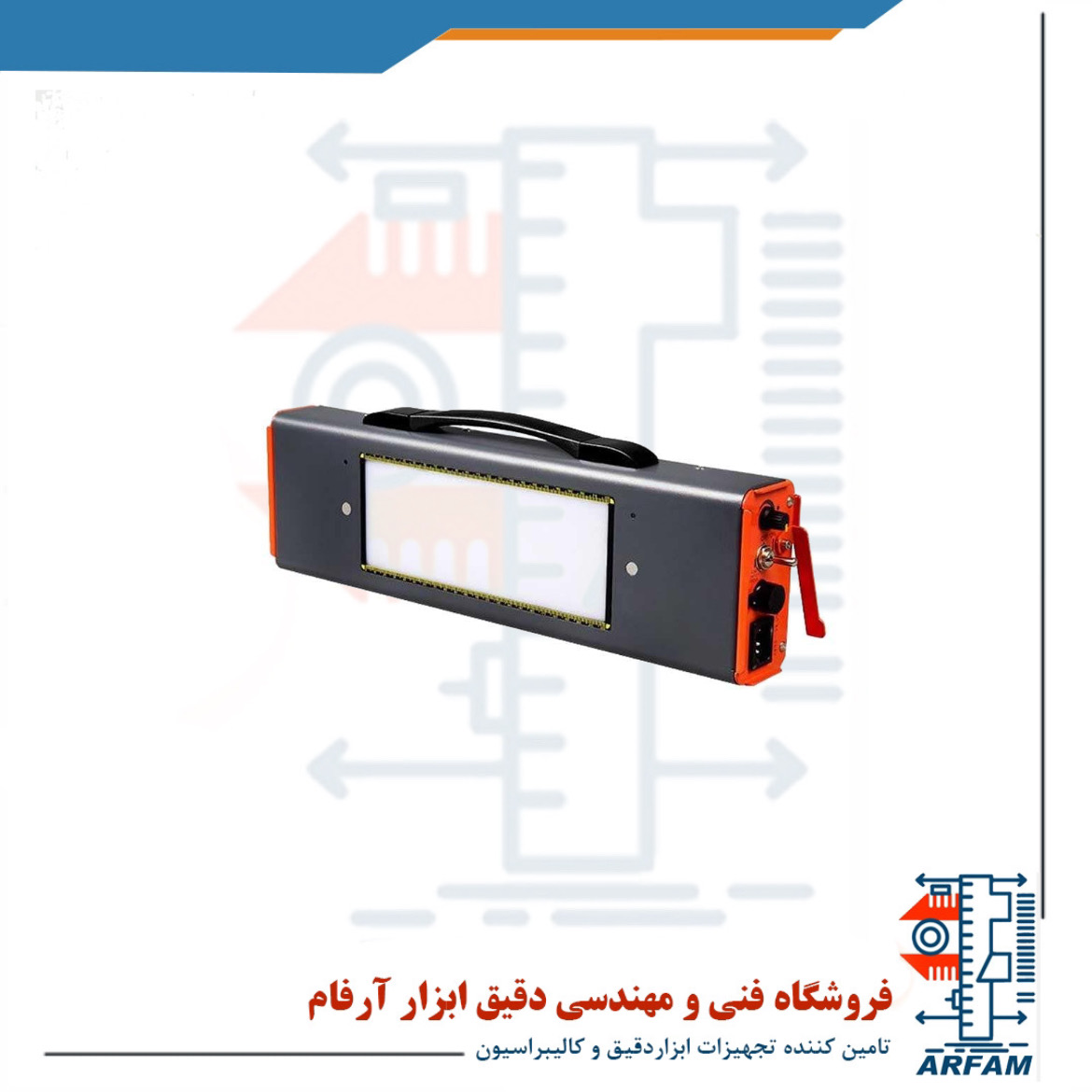

Huatek X-ray film viewer, model FV-2080

ویوور تفسیر فیلم رادیوگرافی هوآتک FV-2080 ساخت کشور چین است. این محصول برای تفسیر فیلم رادیوگرافی تا 4.5 D مناسب است همچنین این ویوور رادیوگرافی دارای فن و پدال پایی جهت تنظیم شدت نور است .

از ویژگی های این محصول میتوان به ماکزیمم تابش 400.000 لوکس ، وزن ویوور 2.5 کیلوگرم و بدنه ضد زنگ و گواهی کالیبراسیون مبدا اشاره کرد.

ویژگی ها و مشخصات فنی FV-2080

• مصرف برق کم
• خنک کننده فن
• سوئیچ پا
• چراغ LED سفید خالص
• ماکزیمم تابش 400.000 لوکس
• دمای سطح: <18 درجه
• پایه رومیزی توکار
• طراحی: مدرن، شیک و ساده

  جدول مشخصات FV-2080

  Adapter Input voltage	85-264VAC / 47-60Hz DC: 12V 5A Power: 48W
  Maximum Light Intensity	>70,000 Cd/㎡,400,000lux
  Film density	>4.0D According to the inspection report
  Surface temperature	<18°Celsius Continuous operation for 24 hours)
  Uniform Viewing Area	98% Full Screen
  Dimmer Control	0% to 100% continuous
  Control mode	Manual + Foot-switch
  Cooling Method	Forced air cooling
  Dimensions	425mm*65mm*130 mm (L*W*H)
  Viewer window	220mm*80mm (L*W)
  Viewing-mask window	200 mm*40 mm (L*W)

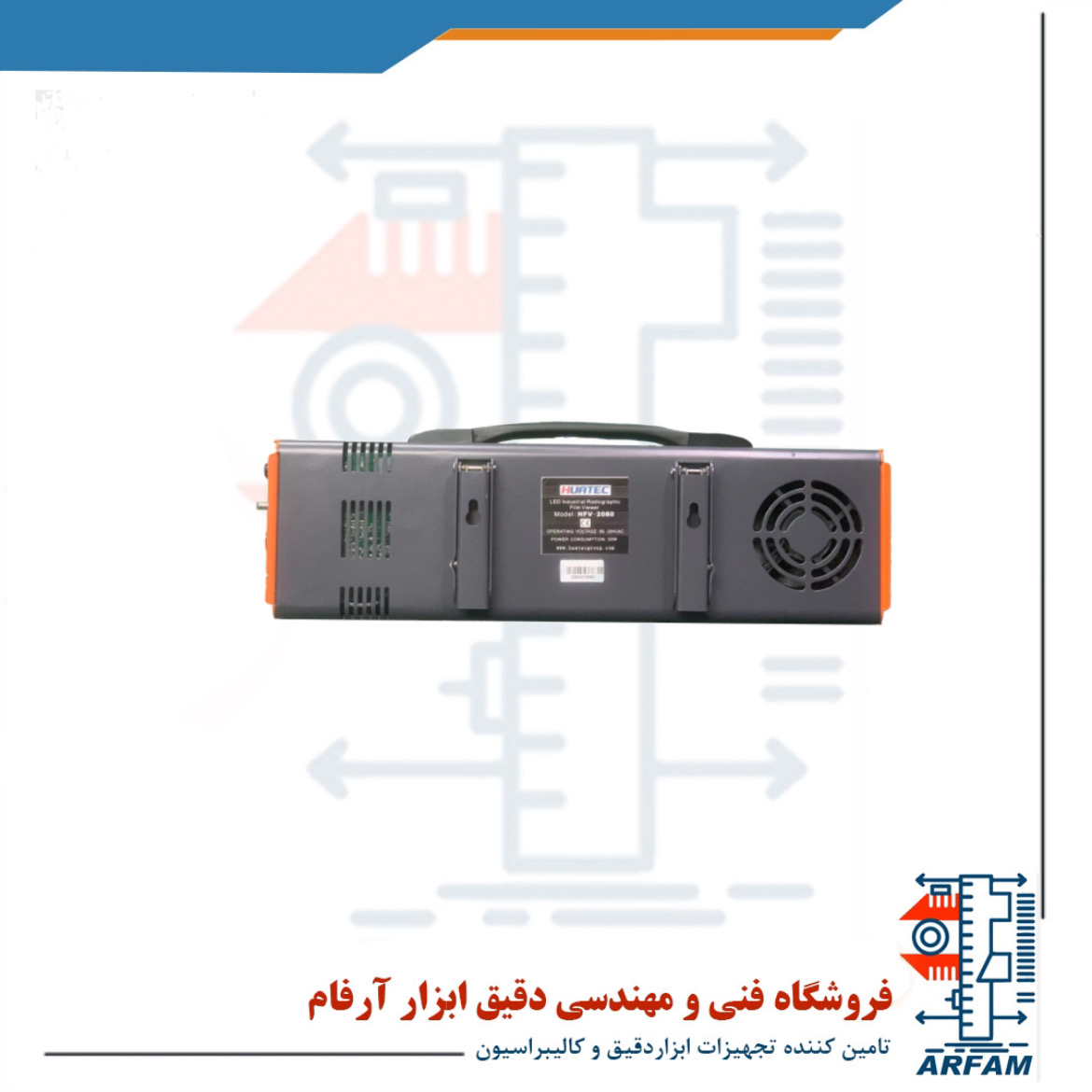

  Weight	2.5 KG Features FV-2080 : Maximum Light Intensity: > 70,000cd/㎡，>400,000LUX Easily View > 5. 0 Density Pure White LED Light 50,000 Hour Lamp Life Low Power Consumption Fan cooling Foot Switch Uniform Viewing Area: 98% Full Screen Dimmer Control: 0% to 100% continuous Surface temperature: <18° Built-desktop stand Design: Modern, Stylish and Simple Power Requirements: 85-264VAC/47-60Hz The power adapter: AC: 90-264VAC / 47-63Hz DC: 12V 5A Safety Regulation and Electromagnetic Compatibility Schematic diagram : Handle       2.Cover       3.Viewing screen Substrate-mask Magnetic adsorption Built-desktop stand Hanging hole      7.Cooling fan      8.Brightness adjustment knob      9.Mode switch Foot switch socket     11.Power switch Fuse Power outlet Specifications FV-2080 :    Adapter Input voltage 85-264VAC / 47-60Hz DC: 12V 5A Power: 48W Maximum Light Intensity >70,000 Cd/㎡,400,000lux Film density >4.0D According to the inspection report Surface temperature <18°Celsius Continuous operation for 24 hours) Uniform Viewing Area 98% Full Screen Dimmer Control 0% to 100% continuous Control mode Manual + Foot-switch Cooling Method Forced air cooling Dimensions 425mm*65mm*130 mm (L*W*H) Viewer window 220mm*80mm (L*W) Viewing-mask window 200 mm*40 mm (L*W) Weight 2.5 KG   Package Contents FV-2080 : LED viewer 1pc Power adapter 1pc Cigarette lighter adapter 1pc Foot switch 1pc AC power cord 1pc Viewing mask 1pc Magnetic film holder 2pcs Magnetic ruler 1pc User’s manual 1pc Calibration certificate 1pc DC power warning: Continuous use of DC power in the vehicle may cause battery discharge! Warning: ensure that the vehicle’s cigarette lighter socket supports 12VDC 5A power consumption. Do not connect the LED viewer to an unverified DC power supply – it may damage the LED viewer and the vehicle! Unplug the DC plug from the DC socket (12) on the side of the viewer. Connect the power cord of the attached cigarette lighter to the DC socket (12). Connect the DC power cable to the cigarette lighter port of the vehicle. After completing the above steps. The power switch (8) on the right control panel of LED viewer is in three positions: off, on and foot switch mode Turn the power switch (8) to on. Adjust the brightness control (7) on the right control panel to the desired intensity. If you want to control through the foot switch, please select the foot switch mode on the power / mode switch (8), and then press the foot switch.
