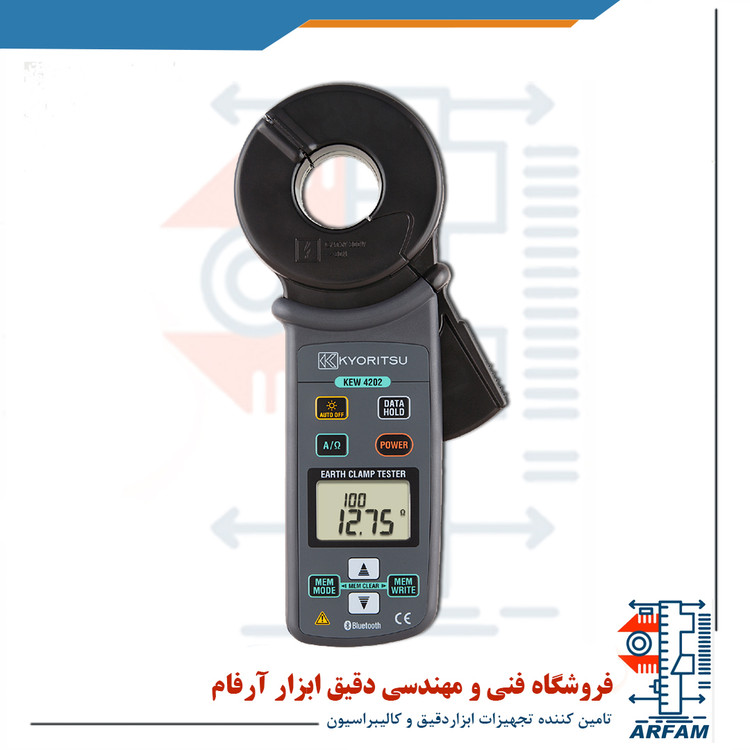

ارت سنج کلمپی کیوریتسو مدل KYORITSU 4202
EARTH CLAMP TESTER KYORITSU 4202
به عنوان یکی از قابلیت های ویژه این دستگاه می توان به اتصال آن به گوشی هایی با سیستم عامل اندروید بوسیله بلوتوث اشاره کرد. داده های اندازه گیری شده را می توان تا 100 داده بر روی گوشی مشاهده کرد. قابلیت ذخیره داده ها را داشته و کاربر GPS، ساعت، زمان و مکان اندازه گیری شده را مشاهده می کند. بدون هیچ گونه پراب و میله ای می توان مقاومت زمین را تا 1500 اهم اندازه گیری کرد. محدوده جریان نشتی TRUE RMS از 0.1 میلی آمپر تا 30 آمپر را نیز دارا می باشد.
مشخصات فنیارت سنج کلمپی کیوریتسو مدل KYORITSU 4202
- دارای TRUE RMS
- اندازه گیری مقاومت زمین از 0.05 تا 1500 اهم
- محدوده اندازه گیری از 0.1 میلی آمپر تا 30 آمپر
- قابلیت اتصال به گوشی
- دهانه فک 32 میلی متری
- خاموشی اتومات
Earth resistance Auto range | 20.00/200.00/1500Ω ±1.5%±0.05Ω(0.00 - 20.99Ω) ±2%±0.5Ω(16.0 - 99.9Ω) ±3%±2Ω(100.0 - 209.9Ω) ±5%±5Ω(160 - 399Ω) ±10%±10Ω(400 - 599Ω) |
---|
AC current (50Hz/60Hz) Auto range | Values are displayed, but accuracy isn't guaranted(600 - 1580Ω) 100.0/1000mA/10.00/30.0A ±2%±0.7mA(0.0 - 104.9mA) ±2%(80mA - 31.5A) |
---|
Operating indication | Earth resistance function : Constant voltage injection Current detection (Frequency : Approx.2400Hz) Dual Integration AC current function : Successive approximation |
---|
Over-range indication | "OL"is displayed when input exceeds the upper limit of a measuring range |
---|
Response time | Approx. 7 seconds (Earth resistance) Approx. 2 seconds (AC current) |
---|
Sample rate | Approx. 1 times per second |
---|
Communication Interface | Bluetooth Ver2.1 + EDR Class2 |
---|
Current consumption | Approx. 50mA (max.100mA) |
---|
Measurement time | Approx.5 hours (when R6 is used) Approx. 21 hours (when LR6 is used) |
---|
Auto power-off | Turns power off about 10 minutes after the last button operation. |
---|
Conductor size | Approx.Ø32mm |
---|
Applicable standards | IEC 61010-1 CAT Ⅳ 300V Pollution degree2 IEC 61010-2-032, IEC 61326 (EMC) |
---|
Power source | DC6V : R6(sizeAA manganese battery) x 4 or LR6 (sizeAA alkaline battery) x 4 |
---|
Dimensions | 246(L)×120(W)×54(D)mm |
---|
Weight | Approx. 780g (including batteries) |
---|

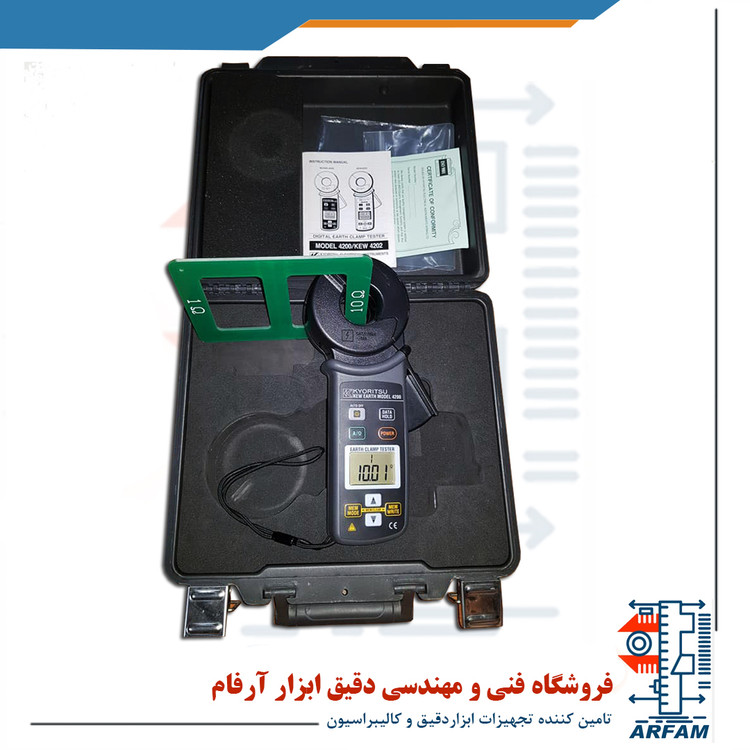

Included Accessories | LR6 x 4, Instruction manual 8304 (Resister for operation check) 9167 (Carrying case[Hard]) |
---|
