گیج جوشکاری Hi-Lo تکی Single Hi-Lo

گیج جوشکاری Hi-Lo تکی Single Hi-Lo

Single Hi-Lo welding gauge

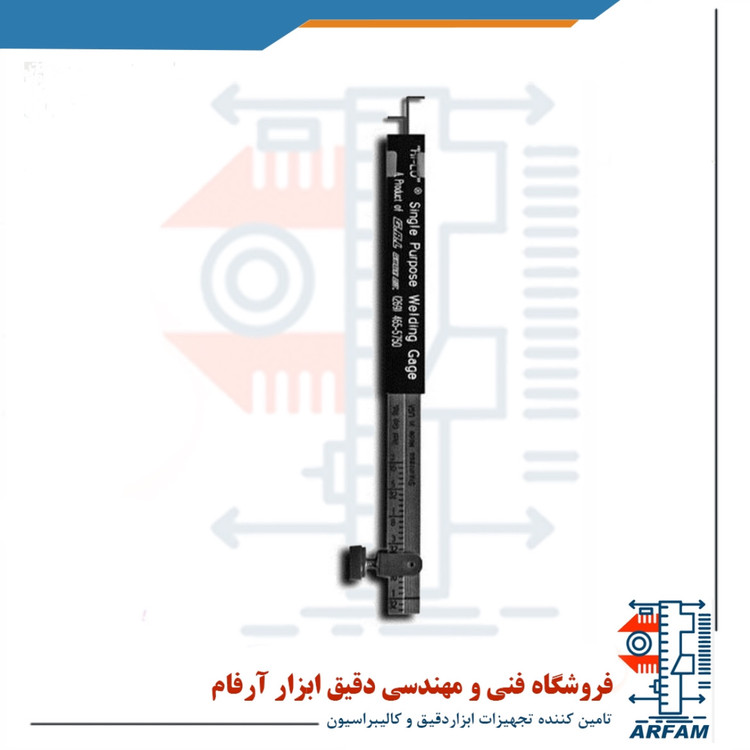

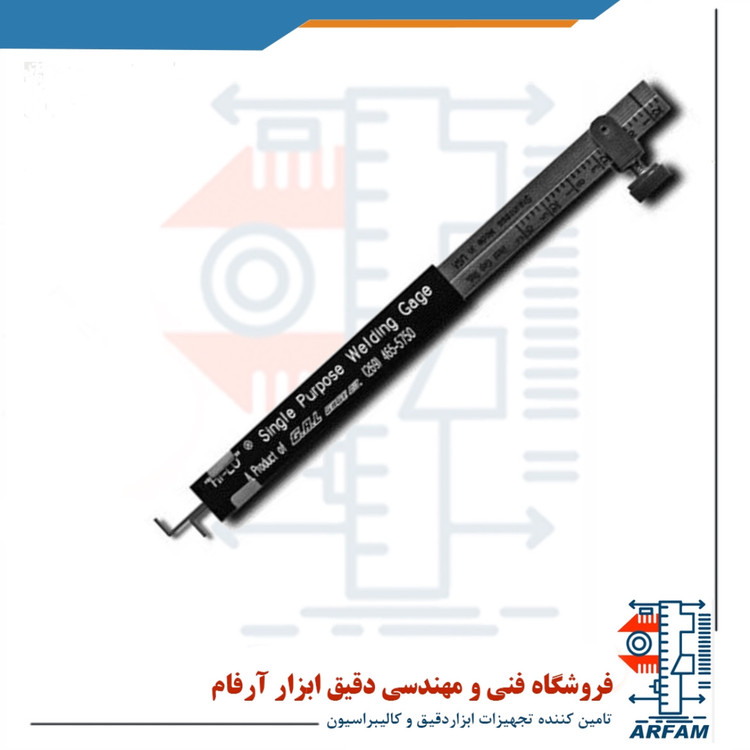

گیج جوشکاری Hi-Lo تکی Single Hi-Lo تعداد خطاها را کاهش می دهد و در بهبود بهره وری موثر است و برای اندازه گیری ریشه جوش مناسب است .

در دو مقیاس اینچ و متریک موجود می باشد

متعلقات: کیف حمل چرمی

Features

• Measurement Scale: Inch or Metric
• Root Weld Space
• Eliminates Rejects – Improves Productivity
• Internal Misalignment



The Hi-Lo Welding Gauge is a multipurpose and versatile gauge. As with many of our gauges, both Inch & Metric units of measurement are available directly on the gauge for dimensional verification.

With the Hi-Lo Gauge, you can measure:

* Internal misalignment after fit up
* Material thickness after fit up
* Verify 37-1/2 degree bevel angle
* Fit-up gap after fit-up
* Fillet weld leg length
* Butt weld reinforcement

We’ll start with an internal misalignment measurement.

First loosen the locking screw and insert the gauge tip into the fit up gap.

Now rotate the gauge 90 degrees and slide the gauge body until it comes in contact with the outside diameter of the pipe. This verifies that the gauge is square and the reading is correct.

Next, pull down the gauge until the internal alignment stops are snug against the inside of the pipes.

Read the misalignment on the scale. This misalignment measures 3/32 of one inch.

You can use the same procedure to measure pipe wall thickness after fit up.
