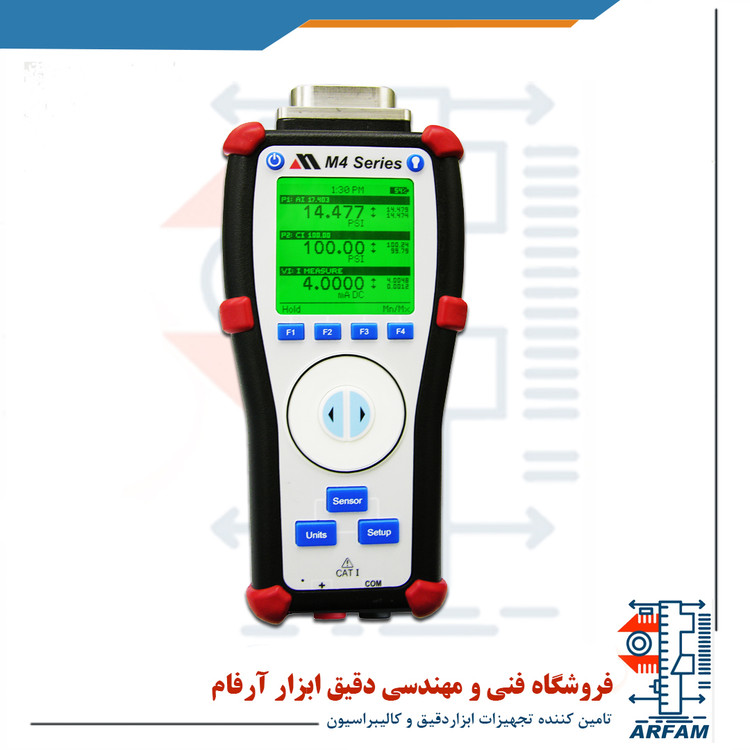

کالیبراتور فشار و دیتالاگر فشار ساخت Meriam آمریکا مدل M400-AI0100-02 - در حد نو
Meriam M400-AI0100-02 Pressure Calibrator/Data Logger, 0 to 100 psia
کمپانی Meriam آمریکا یکی از شرکت های قدر در زمینه تولید تجهیزات اندازه گیری ابزار دقیق با بهترین کیفیت و دقت ها می باشد .

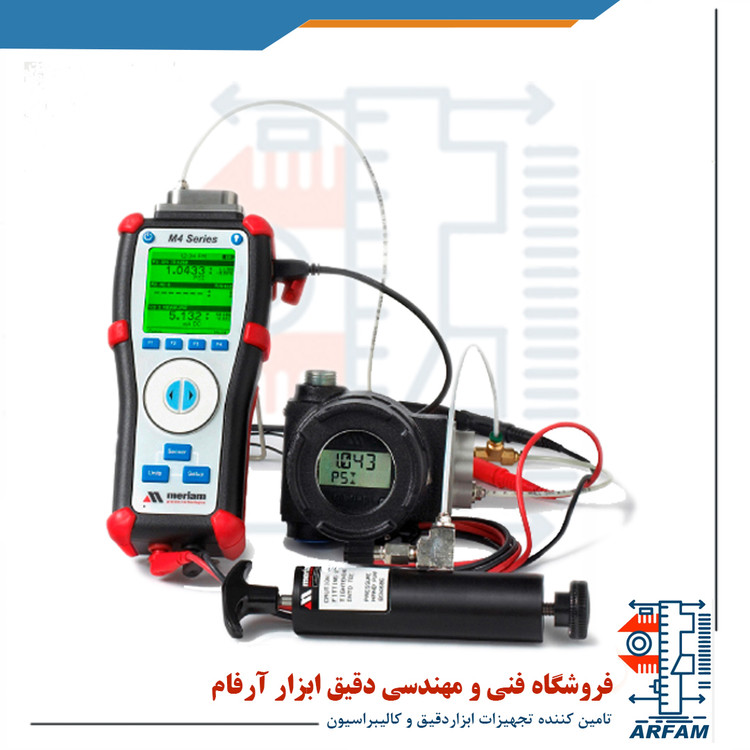

کالیبراتور و دیتالاگر Meriam سری M4 شامل یک سنسور فشار و یک کالیبراتور ولتاژ و جریان می شود . این کالیبراتور فشار گستره فشار 1- تا 100 پی اس ای را پوشش می دهد و اکوریسی ±.025% of Full Scale را دارا می باشد .
مشخصات فنی کالیبراتور فشار و دیتالاگر فشار ساخت Meriam آمریکا مدل M400-AI0100-02
Meriam M400-AI0100-02 Offers
Features
- Includes one pressure sensor and one mA/V instrument
- Choose from differential, gauge, compound or absolute pressure types and ranges from 10"H2O to 3000 psig
- 32 user-selectable pressure units
- Also provides electrical signal measurement and sourcing
- Measure ±50V or ±100mA, source 24VDC, sink V, or source VDC or mA DC
- Data logging is standard on all models
- Pressure, VDC and mADC values are saved to an SD card at user-selected intervals
- SD card supports 100 data files
- Adaptive Interface Wheel is used to to set precise values or configure step or ramp sourcing programs
Pressure Measurement
- Accuracy: ±0.025% rdg. from 10 to 100% f.s.; ±0.002% f.s. < 10% f.s
- Resolution: Select Accurate digits Right of Decimal (AROD) or Precision digits Right of Decimal (PROD)
Voltage & Current Measurements
- DC Voltage Range: ±50 VDC measure, 0-24 VDC source
- DC Current Range: ±100 mA DC measure, 0-24 mA DC source 0-24 mA sink at 3-50 VDC external power Accuracy: ± (0.015% rdg. +0.002 units)
- Resolution: 0.001V, 0.001mA or 0.0001V, 0.0001mA (user selectable, measure mode)
- Loop Power: 250Ω HART resistor included, 24VDC at 4mA, 18.5VDC at 20mA
General Specifications
- Connections: Pressure: 1/8" NPT female; Electrical: Standard banana jacks on 3/4" centers
- Display: 128 x 128 pixel (2" x 2" viewable) monochrome display w/ backlight
- Power Supply: 4 AA alkaline batteries Battery Life: 30+ hours of continuous operation
- Dimensions: 8.5 x 3.75 x 2.25"
- Weight: 1.5 to 1.8 lb.
