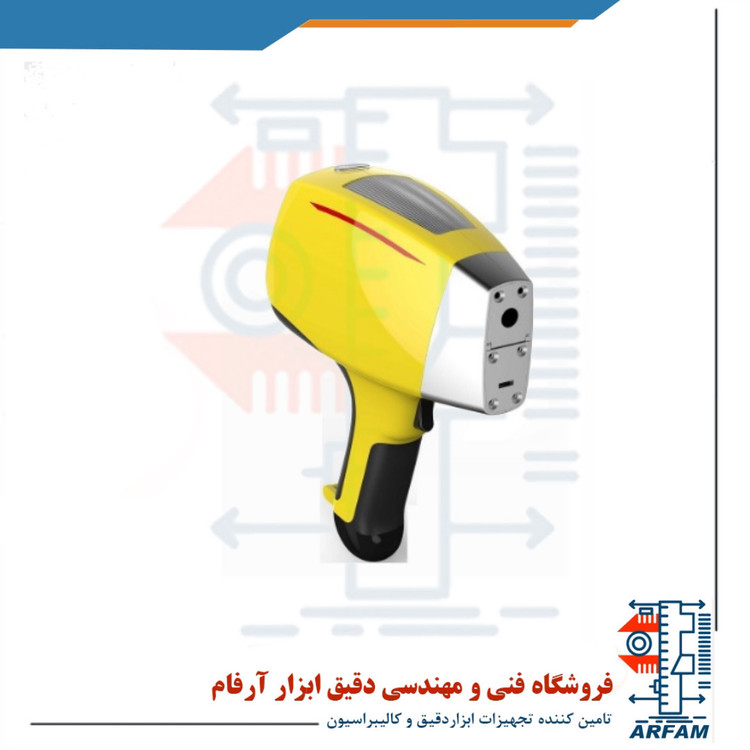

دستگاه آنالیز مواد XRF مدل HXRF-120E

دستگاه آنالیز مواد XRF مدل HXRF-120E

HXRF-120EXRF material analysis device model

دستگاه آنالایزر مواد  XRF  ساخت هوآتک در کمتر از دو ثانیه آنالیز مواد را به شما (تا سه عدد اعشاری) و محتوای ppm نمایش میدهد . آزمایش HXRF-120E تنها چند ثانیه طول می کشد و شناسایی درجه آلیاژها فقط 1 یا 2 ثانیه طول می کشد. این کار باعث تسهیل عملکرد توسط کاربران غیر فنی می شود.

آزمایش HXRF-120E آسیبی نمی بیند و هیچگونه تاثیر سوء بر استفاده از نمونه ها نمی گذارد. در کل فرایند آزمایش هیچ آسیبی پیش بینی نشده است.

این دستگاه دارای نرم افزار آنالیز پیشرفته ای است ( کلید فولاد ) که شما را برای تشخیص متریال اصلی کمک میکند .

HXRF-120E برای شناسایی مواد آلیاژی (PMI) برای بازرسی ورودی مناسب است ؛ مدیریت موجودی مواد ؛ بازرسی مجدد مصالح ساختمانی در ساختمان پتروشیمی ، ذوب فلزات ، مخزن تحت فشار ، نیروگاه ، صنایع پتروشیمی ، مواد شیمیایی خوب ، داروسازی ، هوافضا و سایر موارد صنایع برای جلوگیری از حوادث ایمنی جدی ناشی از مواد مخلوط یا فاقد صلاحیت. HXRF-120E مطابق با استاندارد ANTM ، استاندارد ملی چین (GB) ، UNS ، استاندارد صنعت برق (DL) ، API ، JIS ، GMP ، TSG ، استاندارد صنعت مکانیک (JB) و غیره است.

داده ها را می توان از طریق USB ، WIFI و بلوتوث منتقل کرد و در قالب های Excel ، pdf یا سایر فرمت ها ذخیره کرد. کاربران می توانند گزارش ها را با افزودن آرم شرکت ، آدرس ، نتایج آزمایش ، طیف و موارد دیگر (مانند توضیحات محصول ، مبدا کالا و شماره دسته) سفارشی کنند. سرویس ذخیره اطلاعات i-cloud اختیاری است. داده ها می توانند به سیستم برنامه ریزی منابع سازمانی (ERP) منتقل شوند.

Application Features

1.Excellent Performance

HXRF-120E shows element symbols in both English and Chinese. With high precision, high testing speed and comparable results to even that of laboratory equipment, HXRF-120E displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way.

2.One-touch operation

HXRF-120E test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users.

3.Nondestructive testing (NDT)

HXRF-120E test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process.

4.Analysis software

Analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis reports attached with company LOGO HUATEC and implement remote control of machine; users can edit alloy grade library, add their own grade number or define their own company’s alloy brands; the software also allows automatic calibration of instrument and diagnosis of problems in a remote way; the software can be updated via Internet.

5.Scrap metal recycling and sorting

Scrap metal recycling, reuse, and on-site analysis and sorting. HXRF-120E offers a rapid and reliable identification of the scrap metals when scrap metals are transacted between buyers and sellers. HXRF-120E delivers quantitative element analysis of iron alloy, copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these alloys on the site.

6.Application fields, safety and standards

HXRF-120E is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified materials. HXRF-120E is in compliance with ANTM standard, China National Standard (GB), UNS, electric industry standard (DL), API, JIS, GMP, TSG, Mechanical Industry standard (JB), etc.

7.Quality Control, Quality Assurance (QC/QA) and Error-proofing(PKKA – YOKE)

In metal processing and manufacturing industry, quality control and quality assurance (QC/QA) and error proofing (PKKA – YOKE) of materials (raw materials), semi-finished products and finished products is indispensable. Use of mixed or unqualified materials will bring losses to the company. This is true to companies ranging from small metal processing plants to large aircraft manufacturers.

8.Data Processing and Enterprise Resource Planning (ERP)

Data can be transferred via USB, WIFI and Bluetooth and stored in excel, pdf or other formats. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of goods and batch number); i-cloud data storage service is optional. Data can transport to Enterprise Resource Planning (ERP) system.

Application fields

• Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site
• Metal identification /scrap metal sorting
• QA/QC management in metal production, processing, casting, etc
• Medicine and biological medicine
• Identification of positive materials, oil refining and petrochemical industry
• Thermal power plant, hydroelectric power station, nuclear power plant
• Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.

Elements to be Analyzed and Test Modes

HXRF-120E elements analyzed
	Scope of elements in standard test mode can be extended if there is such a need.
HXRF-120E	can analyze Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi, total 30 elements.

Alloy family

• Iron-based alloy series (stainless steel, chromium/molybdenum alloy steel, low alloy steel, tool steel, seamless steel)
• Nickel-based alloy series (nickel alloy, nickel/cobalt alloy)
• Cobalt-based alloy series
• Titanium-based alloy series
• Copper-based alloy Series (bronze, brass, copper and nickel alloy, etc.)
• High temperature alloys (molybdenum tungsten alloy)
• Aluminum-based alloy

Super-FP algorithm is capable of detecting accurate metal element content and identify material without switching mode !

HXRF-120E hand-held alloy analyzer (XRF) is a powerful weapon in material identification (PMI) in production of high temperature and high pressure boiler, container, pipe, etc; metal identification in iron and steel metallurgy, nonferrous metals, aerospace, weapons, submarine vessels, etc; metal material identification in engineering installation and construction projects in areas of the petrochemical refining, fine chemical, pharmaceutical, power plant, aerospace, etc to ensure equipment and material acceptance meet the project specified requirements; scrap metal recycling industry.

HXRF-120E is applicable to quality control, material classification, alloy identification, accident investigation, etc, which tackles the fundamental difficult problem of raw material analysis. As an innovation of many modern technologies, it is a great helping hand in these applications. Users can personalize the analyzing system according to their own needs.

HXRF-120E’s built-in alloy library contains 380 kinds of alloys, as well as other special alloys for mold, electric power, petrochemical and other industries, which simplifies the conversion of alloys from one country to another. Besides, it has two built-in libraries that the users can define by themselves to extend alloy brands. Therefore, it can extend to as many as 600 alloy brands and test more than 1,000 kinds of alloy materials.

Technical parameters and specifications

Weight	1.6Kg(with battery).
Dimensions	254 x 79 x 280 mm(L x W x H).
Excitation source	50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Ag target (standard),Au,W,Rh target(optional).
Detector	SDD detector
Range of detection	30 elements between Mg and U.
Display system	Industrial resistive touch screen with screen size of 4.3″.   Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness.
Data processing	32GB memory   USB, Bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number).
Heat dissipation	Equipped with a dedicated T-shaped radiator to dissipate the heat no need to wait for cooling of detector time again.

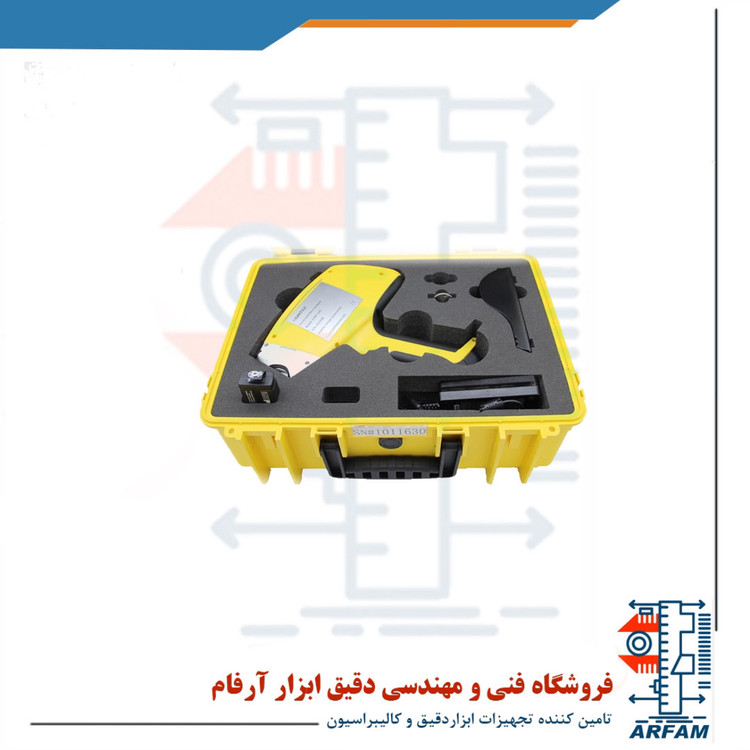

Safety	Built-in double beam technology can automatically sense whether   there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase HUATEC Safety Band;
Power supply system	Intelligent battery management through MSBUS bus, real-time   monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours.
