مولتی متر دیجیتال کیوریتسیو مدل 1052 kyoritsu

مولتی متر دیجیتال کیوریتسیو مدل 1052 kyoritsu

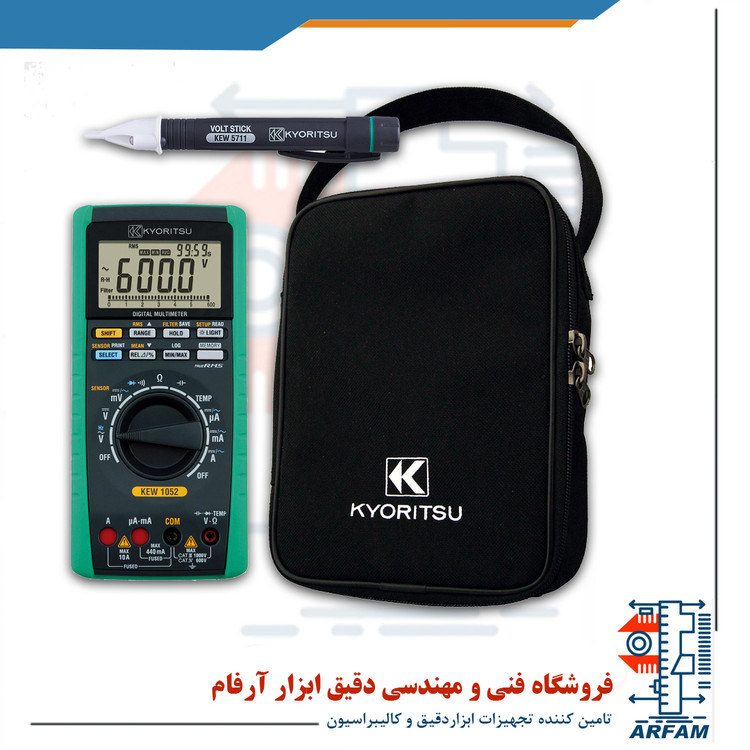

Kyoritsu 1052 CAT IV Digital Multimeter with True RMS

برند: KYORITSU
دسته‌بندی: انواع مولتی متر دیحیتال و آنالوگ

برچسب‌ها:

قابلیت اندازه گیری دما توسط ترموکوبل: از 50- تا 600 درجه سانتی گراد
رنج اندازه گیری ولتاژ AC و DC: از 0 تا 1000 ولت
رنج اندازه گیری فرکانس: از 10 هرتز تا 99.99 کیلو هرتز
رنج اندازه گیری آمپر AC و DC: از 0 تا 10 آمپر

1 سال گارانتی

موجود در انبار فروشگاه دقیق ابزار آرفام

ارسال توسط فروشگاه دقیق ابزار آرفام

18,000,000

17,200,000 تومان

افزودن به سبد خرید

Detection mode	MEAN/RMS (switch)
DC V	600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy)
AC V [RMS]	600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy)
AC V [MEAN]	600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy)
DC A	600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy)
AC A [RMS]	600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy)
Ω	600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy)
Continuity buzzer	600.0Ω (The buzzer turns on for resistances lower than 50±30Ω)
Diode test	2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)
Capacitance	10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy)
Frequency	10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz ±0.02%rdg±1dgt (Basic accuracy)
Temperature	-50 - 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe)
Other functions	Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX) , Minimum value (MIN) , Average value (AVG) , Zero Adjustment (Capacitor, Resistance), Save to Memory , LCD backlight
Applicable standards	IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC)
Power source	R6 (1.5V)×4 (Auto power off: approx. 20 minutes)
Dimensions	192(L)×90(W)×49(D) mm
Weight	Approx. 560g (including batteries)
Included Accessories	7220A (Test leads), R6×4, Instruction manual, 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included)

Detection mode

MEAN/RMS (switch)

DC V

600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V])
±0.09%rdg±2dgt (Basic accuracy)

AC V [RMS]

600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V],
10MΩ<50pF [60/600/1000V])
±0.5%rdg±5dgt (Basic accuracy)

AC V [MEAN]

600.0mV/6.000/60.00/600.0/1000V
(Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V],
10MΩ<50pF [60/600/1000V])
±0.5%rdg±5dgt (Basic accuracy)

DC A

600.0/6000µA/60.00/440.0mA/6.000/10.00A
±0.2%rdg±2dgt (Basic accuracy)

AC A [RMS]

600.0/6000µA/60.00/440.0mA/6.000/10.00A
±0.75%rdg±5dgt (Basic accuracy)

600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
±0.4%rdg±1dgt (Basic accuracy)

Continuity buzzer

600.0Ω (The buzzer turns on for resistances lower than 50±30Ω)

Diode test

2.000V ±1%rdg±2dgt
Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current)

Capacitance

10.00/100.0nF/1.000/10.00/100.0/1000µF
±2%rdg±5dgt (Basic accuracy)

Frequency

10.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz
±0.02%rdg±1dgt (Basic accuracy)

Temperature

-50 - 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe)

Other functions

Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H),
Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *,
LCD backlight

Applicable standards

IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2,
IEC 61010-031, IEC 61326-1 (EMC)

Power source

R6 (1.5V)×4 (Auto power off: approx. 20 minutes)

Dimensions

192(L)×90(W)×49(D) mm

Weight

Approx. 560g (including batteries)

Included Accessories

7220A (Test leads), R6×4, Instruction manual,
8926 (Fuse [440mA/1000V])×1 (included)
8927 (Fuse [10A/1000V])×1 (included)

Description	Model	Specification
Crocodile clip test lead	7234	CAT IV 600V, CAT III 1000V
AC/DC Clamp Sensor	8115	AC 130A / DC 180A
Clamp sensor	8121	AC 100A
8122	AC 500A
8123	AC 1000A
8146	AC 30A
8147	AC 70A
8148	AC 100A
Banana Ø4mm Adjuster Plug	7146	length:190mm
USB Communication set	8241	USB adaptor + USB cable + DMM Software
Carrying case	9154	for the main unit with testi leads and communication cable

Description

Model

Specification

Crocodile clip test lead

7234

CAT IV 600V, CAT III 1000V

AC/DC Clamp Sensor

8115

AC 130A / DC 180A

Clamp sensor

8121

AC 100A

8122

AC 500A

8123

AC 1000A

8146

AC 30A

8147

AC 70A

8148

AC 100A

Banana Ø4mm Adjuster Plug

7146

length:190mm

USB Communication set

8241

USB adaptor + USB cable + DMM Software

Carrying case

9154

for the main unit with testi leads and communication cable

Description	Model	Specification
Temperature probes	8405	-40ºC - 500ºC (Surface type, Point material: Ceramic)
8406	-40ºC - 500ºC (Surface type)
8407	-40ºC - 700ºC (Liquid, Semi-solid)
8408	-40ºC - 600ºC (Air, Gas)

Description

Model

Specification

Temperature probes

8405

-40ºC - 500ºC
(Surface type, Point material: Ceramic)

8406

-40ºC - 500ºC (Surface type)

8407

-40ºC - 700ºC (Liquid, Semi-solid)

8408

-40ºC - 600ºC (Air, Gas)

مولتی متر دیجیتال کیوریتسیو مدل 1052 kyoritsu

مـشـخـصـات فنی مولتی متر دیجیتال کیوریتسیو مدل 1052 kyoritsu

رنج اندازه گیری آمپر AC و DC از 0 تا 10 آمپر

رنج اندازه گیری ولتاژ AC و DC از 0 تا 1000 ولت

رنج اندازه گیری فرکانس از 10 هرتز تا 99.99 کیلو هرتز

قابلیت اندازه گیری دما توسط ترموکوبل از 50- تا 600 درجه سانتی گراد

قابلیت خاموشی به صورت اتوماتیک

قابلیت اندازه گیری به صورت معمولی و True RMS

دارای قابلیت تست بیزر و دیود

انتقال دادهها با پورت USB به کامپیوتر

Option

Thermocouple Type K Specification
