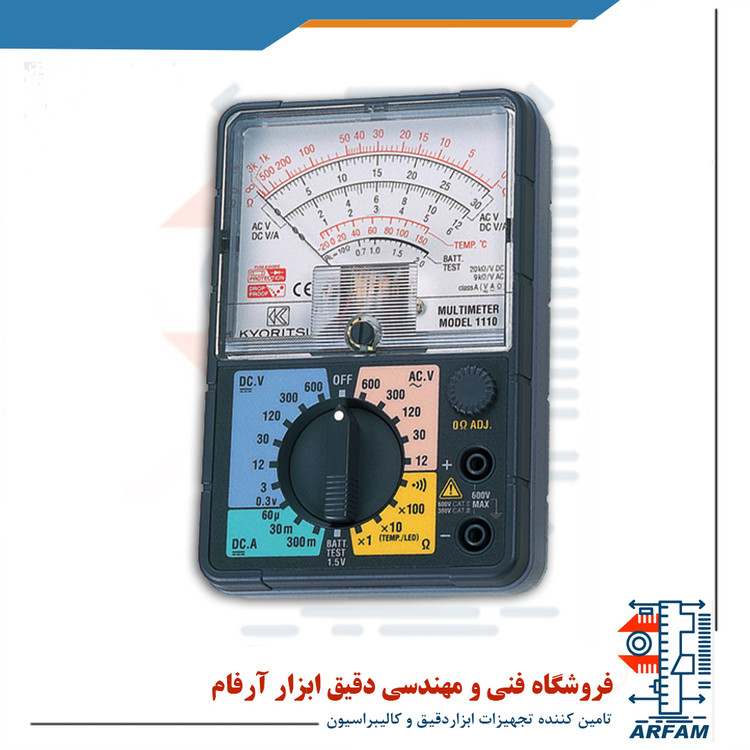

مولتی متر آنالوگ کیوریتسیو مدل kyoritsu 1110
Kyoritsu 1110 Analogue Multimeter 300mA dc 600V ac/dc
| DC V | 0.3V (16.7kΩ/V) ±3% of FS 3/12/30/120/300/600V (20kΩ/V) ±3% of FS |
|---|---|
| AC V | 12V (9kΩ/V) ±4% of FS 30/120/300/600V (9kΩ/V) ±3% of FS |
| DC A | 60µA/30/300mA ±3% of FS |
| Ω | 3/30/300kΩ ±3% of scale length |
| Continuity buzzer | Buzzer sounds below 100Ω |
| Battery Test | 1.5V (0.7 - 2V) ±3% of FS (10Ω load) |
| Temperature | Note: The MODEL1110 includes a temperature measurement scale, but it is not available for new customers due to the discontinue of the Temperature Probe 7060. |
| LED | 10mA approx. at 0 Ω (at 3V of battery voltage) |
| Applicable standards | IEC 61010-1 CAT III 300V Pollution Degree 2 CAT II 600V Pollution Degree 2 IEC 61010-2-031 |
| Power source | R6 (AA) (1.5V) × 2 |
| Dimensions | 140(L) × 94(W) × 39(D) mm |
| Weight | 280g approx. |

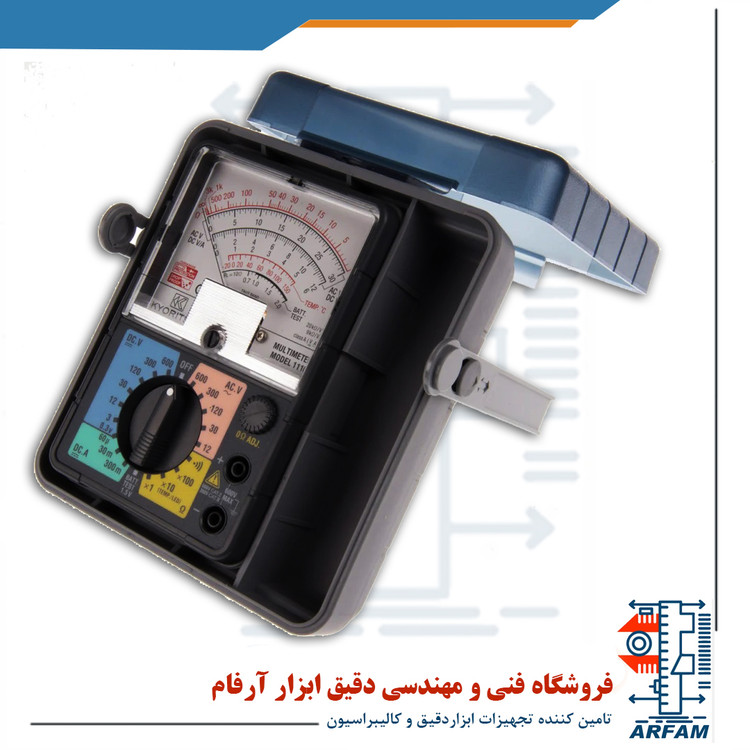

| Included Accessories | 7066A (Test leads) 8923 (F500mA/600V fuse) × 2 9103 (Carrying case) R6 (AA) × 2 Instruction Manual |
