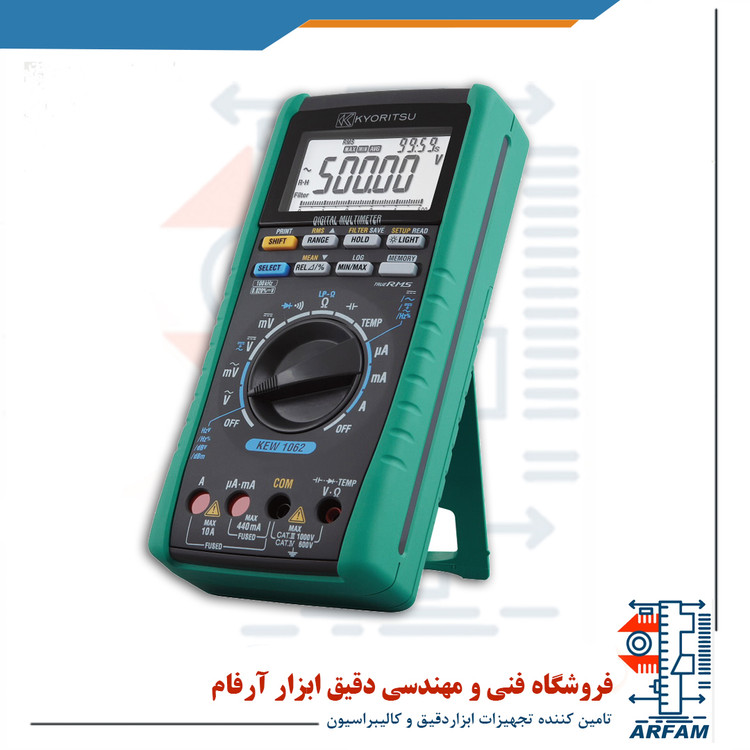

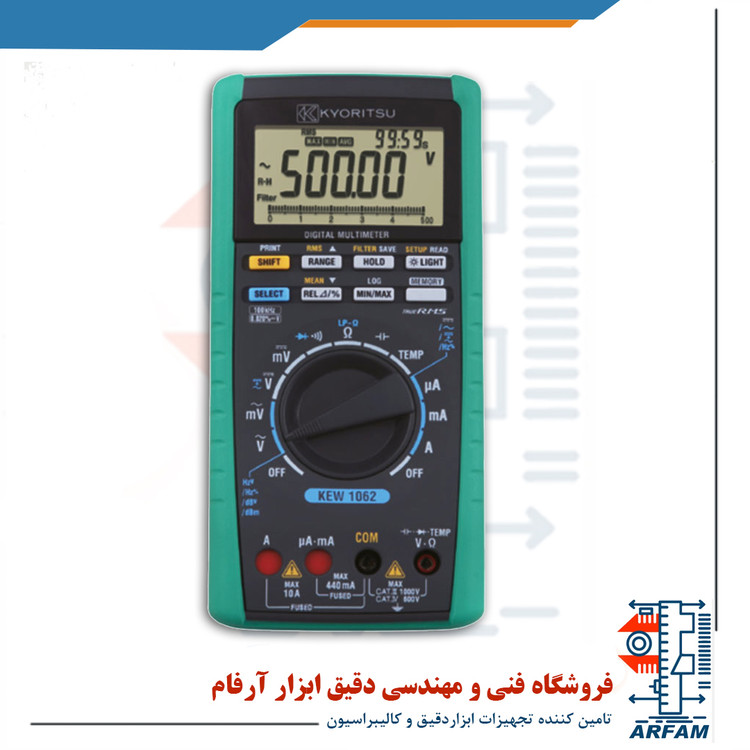

مولتی متر دیجیتال کیوریتسیو مدل Kyoritsu 1062
Kyoritsu 1062 MEAN/RMS Switch Multimeter
| Detection mode | MEAN/RMS (switch) |
|---|---|
| DC V | 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V (Input impedance: Approx. 100MΩ [50/500/2400mV], 10MΩ [5/50/500/1000V]) ±0.02%rdg±2dgt (Basic accuracy) |
| AC V [RMS] | 50.000/500.00mV/5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V]) ±0.4%rdg±30dgt (Basic accuracy) |
| AC V [MEAN] | 50.000/500.00mV/ 5.0000/50.000/500.00/1000.0V (Input impedance:11MΩ<50pF [50/500mV/5V],10MΩ<50pF [50/500/1000V]) ±1%rdg±30dgt (Basic accuracy) |
| DCV+ACV | 5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V]) ±0.5%rdg±10dgt (Basic accuracy) |
| DC A | 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.2%rdg±5dgt (Basic accuracy) |
| AC A [RMS] | 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.75%rdg±20dgt (Basic accuracy) |
| AC A [MEAN] | 500.00/5000.0µA/50.000/500.00mA/ 5.0000/10.000A ±1.5%rdg±20dgt (Basic accuracy) |
| DCA+ACA | 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±1%rdg±10dgt (Basic accuracy) |
| Ω | 500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ ±0.05%rdg±2dgt (Basic accuracy) |
| LowPower-Ω | 5.000/50.00/500.0kΩ/5.000MΩ ±0.2%rdg±3dgt (Basic accuracy) |
| Continuity buzzer | 500.0Ω (The buzzer turns on for resistances lower than 100±50Ω) |
| Diode test | 2.4000V ±1%rdg±2dgt Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current) |
| Capacitance | 5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF ±1%rdg±5dgt (Basic accuracy) |
| Frequency | 2.000 - 9.999/9.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz ±0.02%rdg±1dgt (Basic accuracy) |
| DUTY | 10 - 90% ±1%rdg |
| Temperature | -200 - 1372ºC ±1%rdg±1.5ºC -328 - 2501.6ºF ±1%rdg±2.0ºF (with the use of K-type Temperature probe) |
| Measurement functions | DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature, Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test, LowPower-Ω |
| Other functions | Data Hold (D/H), Auto Hold (A/H), Peak Hold (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight |
| Applicable standards | IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC) |
| Power source | R6 (1.5V)×4 (Auto power off: approx. 20 minutes) |
| Dimensions | 192(L)×90(W)×49(D) mm |
| Weight | Approx. 560g (including batteries) |
| Included Accessories | 7220A (Test leads), R6×4, Instruction manual, 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included) |
| Description | Model | Specification | |
|---|---|---|---|
| Crocodile clip test lead | 7234 | CAT IV 600V, CAT III 1000V | |
| AC/DC Clamp Sensor | 8115 | AC 130A / DC 180A | |
| Clamp sensor | 8121 | AC 100A | |
| 8122 | AC 500A | ||
| 8123 | AC 1000A | ||
| 8146 | AC 30A | ||
| 8147 | AC 70A | ||
| 8148 | AC 100A | ||
| Banana Ø4mm Adjuster Plug | 7146 | length:190mm | |
| USB Communication set | 8241 | USB adaptor + USB cable + DMM Software | |
| Carrying case | 9154 | for the main unit with testi leads and communication cable | |
| Description | Model | Specification |
|---|---|---|
| Temperature probes | 8405 | -40ºC - 500ºC (Surface type, Point material: Ceramic) |
| 8406 | -40ºC - 500ºC (Surface type) | |
| 8407 | -40ºC - 700ºC (Liquid, Semi-solid) | |
| 8408 | -40ºC - 600ºC (Air, Gas) |
