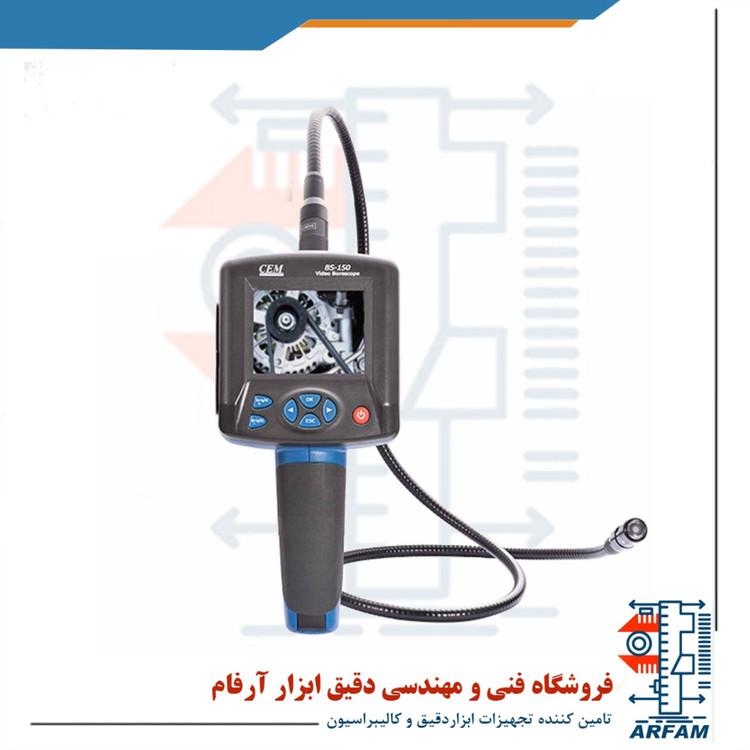

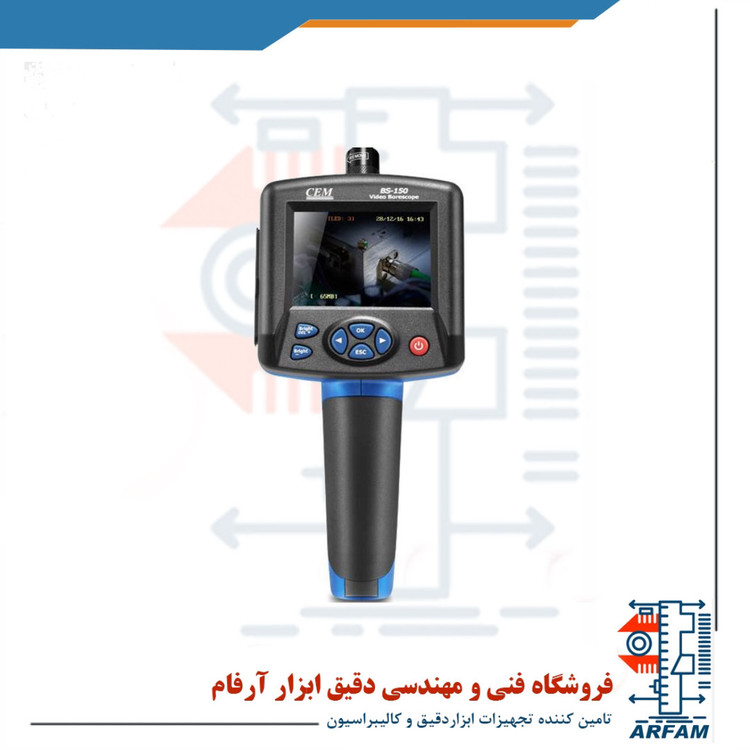

ویدئو بروسکوپ مدل CEM BS150

CEM BS150 Videoscope

این دستگاه یک دوربین بازرسی با ویدئو بروسکوپ می باشد که به وسیله آن می توان از محل های غیر قابل دسترسی بازدید نمود مانند: داخل سیستم های مکانیکی ، موتور خودرو و… . دستگاه ویدئوبورسکوپ مدل BS150  ساخت کمپانی CEM چین دارای نمایشگر تلویزیونی با دوربین فلکسی بل می باشد که قابلیت تصویربرداری و فیلم برداری با کیفیت بالا را دارد.



مشخصات فنی:

ویدئو بروسکوپ مدل CEM BS150 ساخت کمپانی CEM چین

-نمایشگر تلویزیونی با دوربین فلکسی بل

-دارای صفحه مانیتور 2/3 اینچ و لنز 0.66 اینچ، 17 میلی متر و پراب قابل انعطاف حمل لنز…

-پراب قابل انعطاف حمل لنز 100 سانت

-کارت ورودی 8 گیگابایت

-زاویه دید لنز 180 تا 0 و چراغ مخصوص جهت نمایش بهتر تصاویر

-دارای صفحه نمایش LCD  رنگی 3.2 اینچی نوع TFT

-رزولوشن: 320*240 پیکسل
-زبان: پشتیبانی از زبان های انگلیسی، فرانسه، آلمانی، اسپانیایی

Video Borescope

BS-150

This device captures and displays video of objects in the hard to reach tight space. This device is ideal for inspectors to visually evaluate and observe objects through a small opening. The video or image of the object is displayed on the LCD screen for easy observation.

There is also a built-in TV-out port, which allows the video/image to be sent to your NTSC or PAL TV instantaneously. This device is compact and portable. It comes with a carrying case to protect your device when working in the field. You can also feed the TV-out signal to a VCR (NOT included) for recording.

These Video Bore-scopes have Color TFT LCD, supporting photo/video, time/date display and multi-languages. Video and images can also be transferred to your PC via the SD Card or USB cable (included), Waterproof (IP67) flexible gooseneck retains configured shape. Battery is charged through USB-cable.



• Detects the inside parts of the machinery
which is unviable to check whether the
machineryis working normally (cars, heavy
machinery)
• Put the gooseneck with camera underwater
to check the objects in the water (Drainage
work)
•Used in some special monitoring places,
under the cars.
•Used for wild adventure
Safety
• Satisfied with European CE safety standards

Technical Specifications

Display Sceen 3.2 inch TFT
Display Pixel 240 (RGB) *320
Photosensitive Devices 1/4 inch CMOS
Sensor Pixel 640*480
Photo Resolution 640*480
Maximum Number of Frames (FPS) 30FPS/S
Color Digit(bit) 24
Focusing Distance Fixed at 5-1Scm
Goosenneck Length 1m (2m/3m selectable)
Camera Diameter 17mm
Video Format MPEG4/3GP/AVVASF
Photo Format JPEG
Camera Video Format 3GP
Saved Image Format JPG (640*480)
SD Card MAX 32GB
Flash Memory MAX SGB
Working Voltage Li battery 3.7V/2000mA
Video Working Current Approx.380mA
Static Current MAX 20μA
TV OUT PAL / NTSC system
Operating Temperature 0°C–50°C
Charging Temperature -20°C–60°C
Storage Temperature -20°C–60°C
Storage Humidity 15% to 85%RH
Data Output USB data cable and SD card
Power Supply 3.7V,2000mA’h battery (1860)
Size(L,W,H) 240mm*100mm*160mm
Standard Accessories user manual, 3.7V lithium battery, package box

BS-150
VIDEO BORESCOPE

I On-site inspection by photos and videos
I Image rotation by pressing up and down buttons under
video mode
I Images display with current time and date
I Single image or video deletion
I Image and video recording
I Display with time and date
I SD Card (32GB)
I Flash Card (8GB)
I Built-in 65M Flash Capacity
I TV-OUT
I Video Format (MP4 AVl, 3GP, ASF)
I Image Photo Format (JPG.JPEG)
I Languages: English, French, German, Spanish, Turkish
I Support operation in dark environment (with four LED lights)
I USB2.0 connection to computer
I IP 67 – Water and Dust Proof
