دستهبندی: اندازه گیری
برچسبها :
پارت نامبر: K1506M201
عرض قطعه تست: Maximum: 64mm (2.5”)
متعلقات: Elcometer 1506 Cylindrical Mandrel Bend Tester and operating instruction


پارت نامبر
K1506M201
عرض قطعه تست
Maximum: 64mm (2.5”)
متعلقات
Elcometer 1506 Cylindrical Mandrel Bend Tester and operating instruction

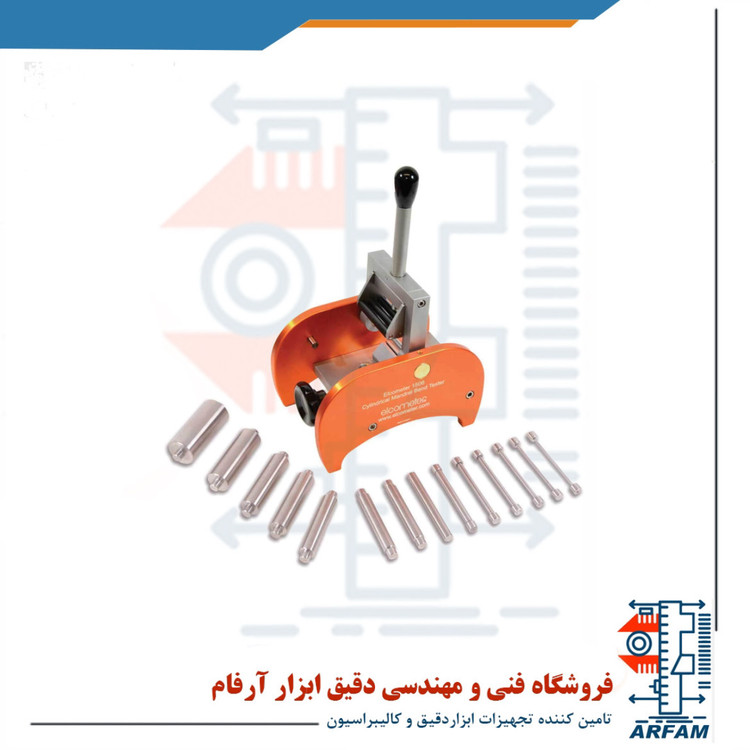

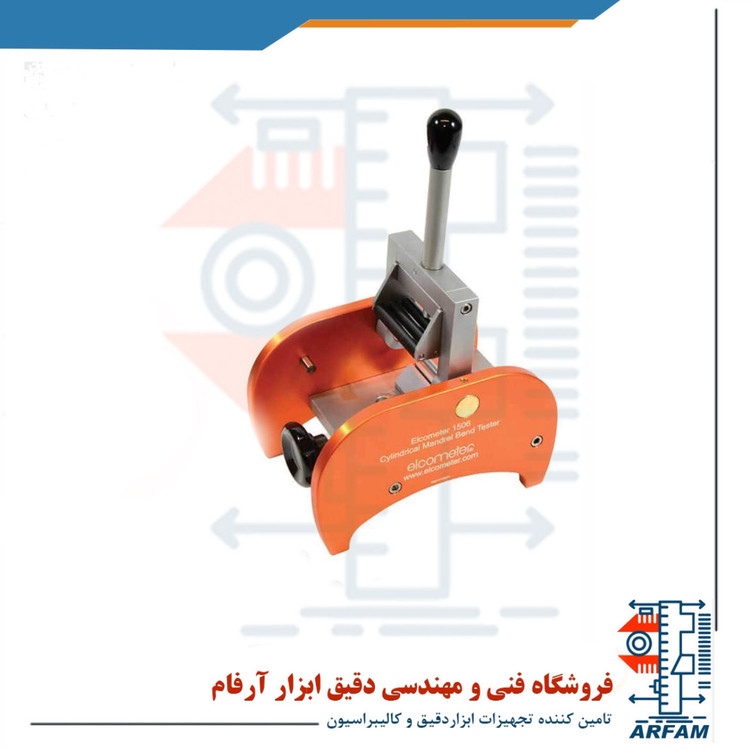

تست خمش رنگ و پوشش الکومتر ELCOMETER 1506
ELCOMETER 1506 paint and coating bending test
دستگاه تست خمش رنگ و پوشش بر محور استوانه ای برند معتبر انگلیسی الکومتر Elcometer 1506 با توضیح Cylindrical Mandrel یعنی بر محر استوانه ای دستگاهی است برای محاسبه میزان خاصیت ارتجاعی، چسبندگی و کشیدگی رنگ ها و پوشش ها طراحی شده است
| پارت نامبر | توضیحات |
| K1506M201 | Elcometer 1506 Cylindrical Mandrel Bend Tester |
| Test Piece Width | Maximum: 64mm (2.5”) |
| Test Piece Length | Maximum: 80 to 100mm (3.15 to 3.93”) depending on the size of the Mandrel used |
| ابعاد | 320 x 135 x 130mm (12.6 x 5.3 x 5.1″) |
| وزن | 4.3kg (9.5lb) |
| متعلقات | Elcometer 1506 Cylindrical Mandrel Bend Tester and operating instructions |
Technical Specification
Elcometer 1506 Cylindrical Mandrel Bend Tester
| Part Number | Description | |
| K1506M201 | Elcometer 1506 Cylindrical Mandrel Bend Tester | |
| Test Piece Width | Maximum: 64mm (2.5”) | |
| Test Piece Length | Maximum: 80 to 100mm (3.15 to 3.93”) depending on the size of the mandrel used | |
| Dimensions | 320 x 135 x 130mm (12.6 x 5.3 x 5.1”) | |
| Weight | 4.3kg (9.5lb) | |
| Packing List | Elcometer 1506 Cylindrical Mandrel Bend Tester and operating instructions | |
