آمپرمتر کلمپی دیجیتال هیوکی مدل HIOKI 3288-20
ولت
تا 600 ولت
دهانه فک
35 میلی متری
دارای
TRUE RMS
جریان
تا 1000 آمپر
اندازه گیری مقاومت
تا 41.99 مگا اهم

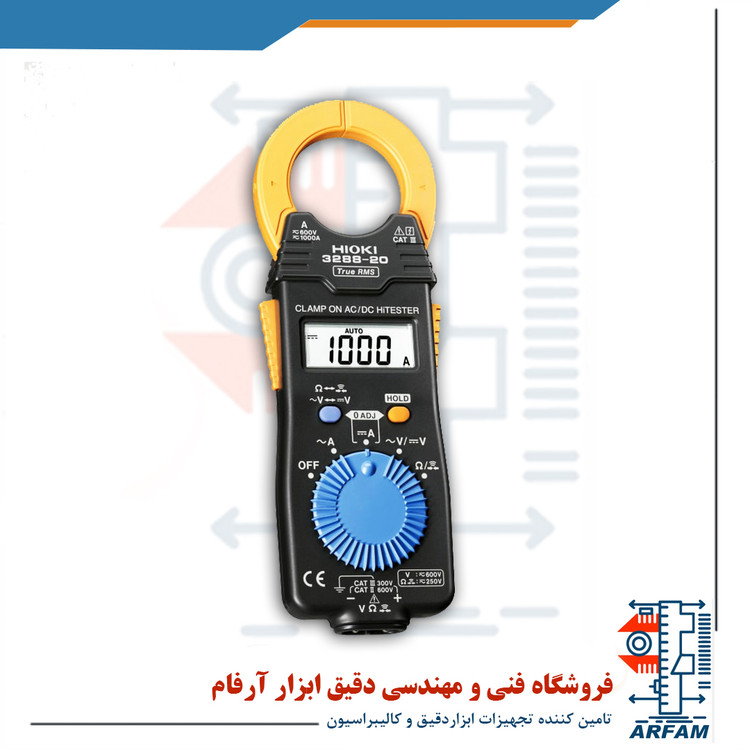

آمپرمتر کلمپی دیجیتال هیوکی مدل HIOKI 3288-20
Hioki 3288-20 Clamp On AC/DC HiTester
کلمپ آمپر متر هیوکی مدل HIOKI 3288-20 ساخت کمپانی بزرگ و معتبر HIOKI کشور ژاپن یکی از با دقت ترین آمپر متر ها جهت اندازه گیری جریان تا 1000 آمپر می باشد. هیوکی 3288-20 دارای TRUE RMS جهت اندازه گیری دقیق و موثر را دارا می باشد. همچنین می توان جریان AC/DC، ولتاژ، مقاومت و تست پیوستگی را نیز اندازه گیری کرد. با توجه به مقاوم بودن و داشتن کیفیت بالای این دستگاه مناسب برای استفاده های صنعتی و تکنسین های برق می باشد.
مشخصات فنی کلمپ آمپر متر دیجیتال هیوکی مدل HIOKI 3288-20
- دارای TRUE RMS
- اندازه گیری جریان AC/DC تا 1000 آمپر
- اندازه گیری ولتاژ AC/DC تا 600 ولت
- اندازه گیری مقاومت تا 41.99 مگا اهم
- دهانه فک 35 میلی متری
- کاربری راحت و آسان
CLAMP ON AC/DC HiTESTER 3288
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.
Key Features
- • Model 3288-20: True RMS
- • Use the 3288 for high current measurements such as UPS emergency batteries and train motors
- • Voltage, resistance, and continuity check functions
specifications
dc current : 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt
ac current : 100.0/ 1000 A, (10 Hz to 500 Hz, True RMS)
Basic specifications
Accuracy guaranteed: 1 year
| 3288 | 3288-20 | |||||
| DC Current range | 100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt. | |||||
| AC Current range | 100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
100.0/ 1000 A, (10 Hz to 500 Hz, True RMS), Basic accuracy: ±1.5 % rdg. ±5 dgt. |
||||
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. | |||||
| AC Voltage range | 4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, Average rectified) |
4.199 V to 600 V, 4 ranges, Basic accuracy: ±2.3 % rdg. ±8 dgt. (30 to 500 Hz, True RMS) |
||||
| Resistance range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt. | |||||
| Crest factor | N/A | 3 or less (2 at 1000 A range, 1.5 at Voltage) | ||||
| Other functions | Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A) | |||||
| Display | LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s | |||||
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use 60 hours | Coin type lithium battery (CR2032) ×1, Continuous use 35 hours | ||||
| Core jaw dia. | φ 35 mm (1.38 in) | |||||
| Dimensions and mass | 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz) | |||||

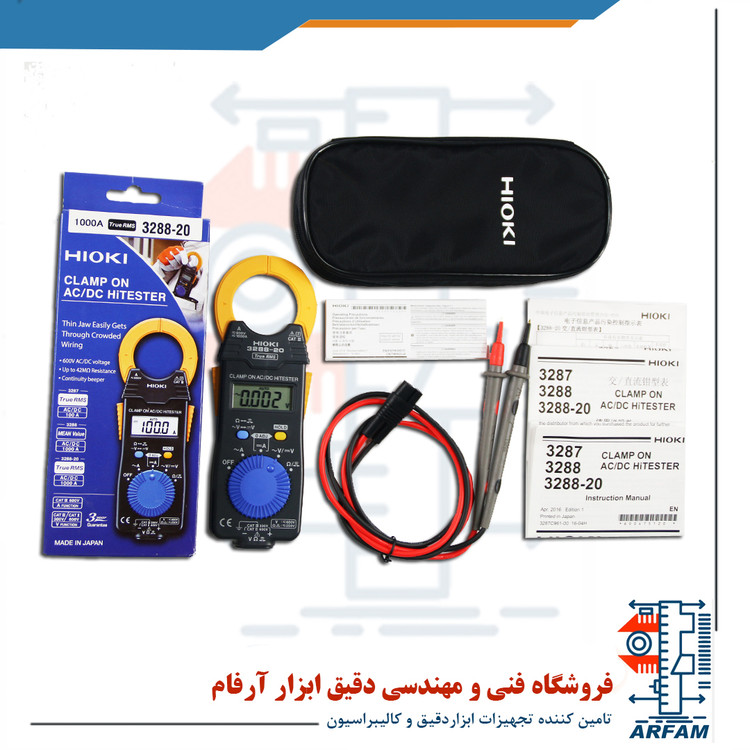

| Accessories | Coin type lithium battery (CR2032) × 1, Carrying case 9398 ×1, Test lead L9208 ×1, Instruction manual ×1 | |||||
*** جهت خرید محصول قبل از خرید لطفا با کارشناسان ما تماس حاصل نمائید تا از قیمت و موجودی کالا اطمینان حاصل نمائید ***
