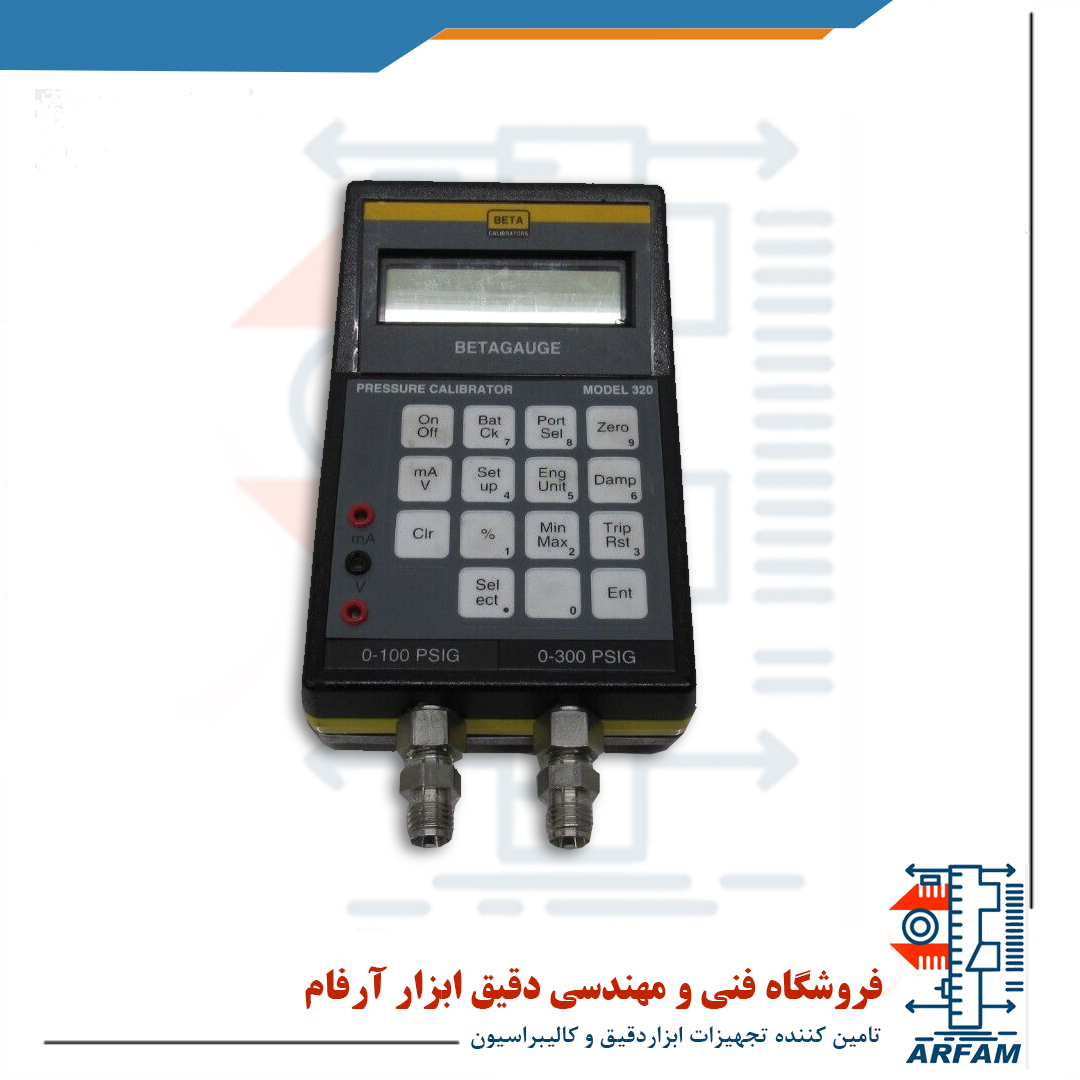

تست گیج فشار دیجیتال دوبل مدل BETA 320 ساخت کمپانی بتا آمریکا
Beta 320 Dual Pressure Calibrator
مشخصات فنی تست گیج دیجیتال دوبل مدل BETA 320 ساخت کمپانی بتا آمریکا :
- Available in Single or Dual Range Models
- High Accuracy of +/-0.075% of Reading
- Intrinsically Safe Option (Class 1, Div 1 A, B, C,D)
- High Resolution, up to 5 Digits
- 20 Ranges Available; 10” Water to 5000 PSIG
- Absolute PSIA Models Available
- Dual Pressure Ports in One Unit
- Automatic Calibration Check on Power-up
- Field Recalibration is Possible
- Read out in 8 Engineerign Units
- 1 User Defined Pressure Unit
- 24 VDC Power Supply
- Reads mA DC and V DC for Loop Checks
- MIN/MAX and % Error Displays
- Trip Detect for Pressure Switch Testing
- Battery Check Function with Auto-Off
- Zero Set and Dampening Function
- Dual Display LCD
- Reference ”H2O Temperature Correction
- Programmable Ownership Screen
- Optional 24VDC Loop Power Supply
